MTX Audio JH10001 Jackhammer Series 1100W x 1 @ 1-Ohm Class D Mono Block
AmpUSD $219.99
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
Established 1991 • 7 Locations • Authorized Dealer • Fast Shipping Store Home Contact Car Audio Marine Powersports Home Audio MTX Audio JH10001 Jackhammer Series 1100W x 1 @ 1-Ohm Class D Mono Block Amplifier
Jackhammer Series 1000 Watt Monoblock Subwoofer Amplifier
Easy Access Controls
Accessing the fully adjustable gain, low pass filter, subsonic filter and bass boost from the front panel allows for easy adjustment after the unit is installed. This layout is simple and elegant, giving the JH10001 a sophisticated look with the convenience of easy accessibility.
Only What You Need
The JH10001 is designed for one thing, bringing the power to whatever subwoofers you hook it up to. The input section features high quality RCAs for easy connection to after market head units or processors. The Input Level selection is either Pre or Spk In so it can also be used with factory radios that don't have RCA outputs. The Auto Turn On feature is selectable, enabling the unit to turn on when it senses signal, eliminating the need to run a remote wire, or it can be turned on using a remote wire, the choice is yours.
High Quality Power and Speaker Connections
The JH10001 can accept up to a standard 1/0-gauge power and ground wire for optimal performance. The speaker terminals can accept up to 12-gauge speaker. The speaker connection terminal has two sets of positive and negative terminals for easy wiring, the JH10001 can play loads down to 1Ω. Both sets of connectors use set screw style fittings that ensure proper connection and continual signal transfer.
FEATURES • Variable Subsonic Filter
• Top Mount Controls
• Variable Crossovers
• Selectable Turn On Input
• Selectable Input Signal

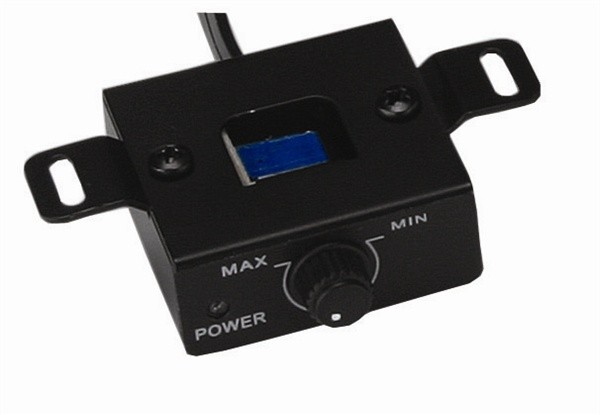

• Remote Bass Knob
SPECIFICATIONS • Description: Mono Block
• Topology: Class D
• 4Ω RMS Power Output: 450W x 1 Channel
• 2Ω RMS Power Output: 775W x 1 Channel
• 1Ω RMS Power Output: 1100W x 1 Channel
• THD: Less Than 1%
• Signal to Noise Ratio: 68dB
• Frequency Response: 20Hz - 250Hz
• Crossover: 40Hz to 250Hz, 12dB/Oct
• Subsonic Filter: 20Hz to 50Hz, 12dB/Oct
• Bass Boost: 0 - 12dB @ 45Hz
• Maximum Input Signal: 10V
• Height: 2.57" (65.2mm)
• Width: 7.61" (193.4mm)
• Depth: 12.24" (311mm)
About Creative Audio Creative Audio opened in 1991 and has grown into a multi-location specialty retailer with seven stores across Missouri and Arkansas. We support enthusiasts, installers, and everyday customers with product knowledge, practical guidance, and a service-first approach that extends beyond the checkout.
We are deeply invested in performance-focused audio across categories: car audio, marine, powersports, and home audio. That means more than selling gear — it means understanding system matching, power requirements, signal integration, real-world installation considerations, and the small details that determine whether a system performs the way it should.
Our teams work daily with source units and processors, amplifiers, speakers, subwoofers, wiring and installation accessories, sound treatment, and integration solutions. We also support remote start and vehicle security categories for customers who want added convenience and protection.
Creative Audio employs Mobile Electronics Certified Professionals, and we support customers before and after the sale. If you are unsure about compatibility, installation requirements, or what is included, message us through eBay with your application details and we will help you make an informed decision.
Most orders ship within 24 hours. For additional support, you may call 800-854-5821. Shipping and Returns Assurance Orders are packaged carefully and ship promptly to the address provided at checkout. If something arrives damaged or incomplete, contact us through eBay messages right away and we will help you resolve it.
Returns are accepted within 30 days in accordance with the return terms shown on this listing. Items must be returned in original condition. International returns are not accepted. Shop Our Store by Category Tap a category to expand and jump straight to what you want. Car Audio Source UnitsReceivers and head units AmplifiersClean power for any build SpeakersCoaxial and component SubwoofersLow-end performance EnclosuresBoxes and enclosures Loaded EnclosuresReady-to-install systems AccessoriesInstall and upgrade gear BundlesPackage deals Shop All Car AudioFull category Marine Audio Marine Source UnitsMarine receivers Marine AmplifiersReliable marine power Marine SpeakersBoat speakers and pods Marine SubwoofersMarine bass solutions Marine EnclosuresProtected installations Marine AccessoriesInstall and rigging gear Marine BundlesPackage systems Shop All MarineFull category Marine AudioBrowse everything Powersports Audio Powersports SpeakersWeather-ready options Powersports AmplifiersCompact and durable SoundbarsUTV and off-road BundlesSystem packages AccessoriesMounts and install gear HarleyHarley-focused audio Shop All PowersportsFull category Powersports AudioBrowse everything Powersports AudioStart here Home Audio Home SpeakersBookshelf, tower, more Home SubwoofersDeep bass performance Outdoor SolutionsPatio and outdoor audio AccessoriesMounts, cables, add-ons Shop All Home AudioFull category Home AudioBrowse everything Visit Storefront Contact Us Trademarks and brand names are the property of their respective owners. For questions, please contact us through eBay messages.
Review details, highlights, and description below. Questions? Use eBay messages for the fastest support.
https://d3d71ba2asa5oz.cloudfront.net/12015581/images/jh10001-02-01__1.jpg https://d3d71ba2asa5oz.cloudfront.net/12015581/images/jh10001-03-01__1.jpg https://d3d71ba2asa5oz.cloudfront.net/12015581/images/0000414_mwa037-external-bass-control.jpegAdditional Photos
Use the dots to view additional images.
Item Details Condition NEW Brand MTX Weight 8.5000 UPC 715442242122715442242122 Highlights Variable Subsonic Filter - A variable low frequency, high pass filter designed to block potentially damaging bass frequencies Top Mount Controls - Provides for Easy Adjustment of the Amplifier Once Installed Variable Crossovers - Allow Fine Tuning Your System Output 4Ω RMS Power Output 450W x 1 Channel 2Ω RMS Power Output 775W x 1 Channel 1Ω RMS Power Output 1100W x 1 Channel Frequency Response 20Hz - 250Hz Fast handling Most orders ship within 24 hours. Shipping details and estimates are shown in the eBay shipping section for this listing. Real support Compatibility questions are welcome. Message us through eBay and include your application details for the quickest help. Authorized dealer We stand behind what we sell and package carefully to help your order arrive as expected. Description MTX JH10001Jackhammer Series 1000 Watt Monoblock Subwoofer Amplifier
Easy Access Controls
Accessing the fully adjustable gain, low pass filter, subsonic filter and bass boost from the front panel allows for easy adjustment after the unit is installed. This layout is simple and elegant, giving the JH10001 a sophisticated look with the convenience of easy accessibility.
Only What You Need
The JH10001 is designed for one thing, bringing the power to whatever subwoofers you hook it up to. The input section features high quality RCAs for easy connection to after market head units or processors. The Input Level selection is either Pre or Spk In so it can also be used with factory radios that don't have RCA outputs. The Auto Turn On feature is selectable, enabling the unit to turn on when it senses signal, eliminating the need to run a remote wire, or it can be turned on using a remote wire, the choice is yours.
High Quality Power and Speaker Connections
The JH10001 can accept up to a standard 1/0-gauge power and ground wire for optimal performance. The speaker terminals can accept up to 12-gauge speaker. The speaker connection terminal has two sets of positive and negative terminals for easy wiring, the JH10001 can play loads down to 1Ω. Both sets of connectors use set screw style fittings that ensure proper connection and continual signal transfer.
FEATURES • Variable Subsonic Filter
• Top Mount Controls
• Variable Crossovers
• Selectable Turn On Input
• Selectable Input Signal
• Remote Bass Knob
SPECIFICATIONS • Description: Mono Block
• Topology: Class D
• 4Ω RMS Power Output: 450W x 1 Channel
• 2Ω RMS Power Output: 775W x 1 Channel
• 1Ω RMS Power Output: 1100W x 1 Channel
• THD: Less Than 1%
• Signal to Noise Ratio: 68dB
• Frequency Response: 20Hz - 250Hz
• Crossover: 40Hz to 250Hz, 12dB/Oct
• Subsonic Filter: 20Hz to 50Hz, 12dB/Oct
• Bass Boost: 0 - 12dB @ 45Hz
• Maximum Input Signal: 10V
• Height: 2.57" (65.2mm)
• Width: 7.61" (193.4mm)
• Depth: 12.24" (311mm)
